GONNEL ALLIAGE

Configurez votre vélo

Inspiration

  • 1

    Taille du cadre

    • S

      S

    • M

      M

    • L

      L

  • 1

    Teinte cadre

    • 1

      Teinte 1/3

    • 1

      Teinte 2/3

    • 1

      Teinte 3/3

  • 1

    Tige de selle & Cintre

    • 1 Pack Aluminium All-road 75,00

    • Contenu Pack Aluminium All-road

      • 1 Ritchey - Rl1 2-Bolt

      • 1 Ritchey - Comp Butano

    • 1 Pack carbone Endurance 350,00

    • Contenu Pack carbone Endurance

      • 1 Ritchey - WCS 1-Bolt zero

      • 1 Ritchey - WCS Ergomax

    • 1 Pack carbone Combo 790,00

    • Contenu Pack carbone Combo

      • 1 Ritchey - Superlogic Link

      • 1 Ritchey - SuperLogic Butano

  • 1

    Transmission

    • 1 Shimano 105 2x12V 1 030,00

    • Développement

      • 1 50-34 x 11-34

      • 1 50-34 x 11-36

    • 1 Sram Force AXS 2x12V 2 250,00

    • Développement

      • 1 48-35 x 10-33

      • 1 48-35 x 10-36

    • 1 Sram Red AXS 2x12V 5 170,00

    • Développement

      • 1 48-35 x 10-33

      • 1 48-35 x 10-36

      • 1 50-37 x 10-33

      • 1 50-37 x 10-36

  • 1

    Roues

    • 1 Duke Road Runner X30 660,00

    • 1 Zipp 303 S 1 160,00

    • 1 Duke Strada 42 1 920,00

    • 1 Campagnolo Shamal 1 970,00

    • 1 Zipp 353 NSW 3 850,00

  • 1

    Pneus

    • 1 Hutchinson - Challenger TLR 32mm 70,00

    • 1 Hutchinson - Black bird TLR 28mm 75,00

    • 1 Pirelli - Cinturato Sport 28mm 60,00

  • 1

    Selle

    • 1 Ritchey - RL1 Streem 25,00

    • 1 San Marco - Aspide Dynamic Open-Fit 80,00

    • 1 Ritchey - WCS Carbon Skyline 195,00

    • 1 San Marco - Shortfit 2.0 3D Carbon FX 350,00

  • 1

    Ruban de cintre

    • 1 Lizard Skins - DSP 39,00

    • Épaisseur

      • Dsp 1.8mm

        Dsp 1.8mm

      • Dsp 2.5mm

        Dsp 2.5mm

      • Dsp Ultra 2.7mm

        Dsp Ultra 2.7mm

    • 1 Velox - High grip 19,00

  • 1

    Montage

    • Option montage complet 250,00

  • 1

    Options

    • 1 Extension de garantie +5ans 300,00

    • 1 Extension de garantie +10ans 500,00

    • 1 Gravure laser 90,00

Prix total 4 500,00
Demande de devis

Gonnel Alliage

Build Summary

Prix total -

Demande de devis

Description

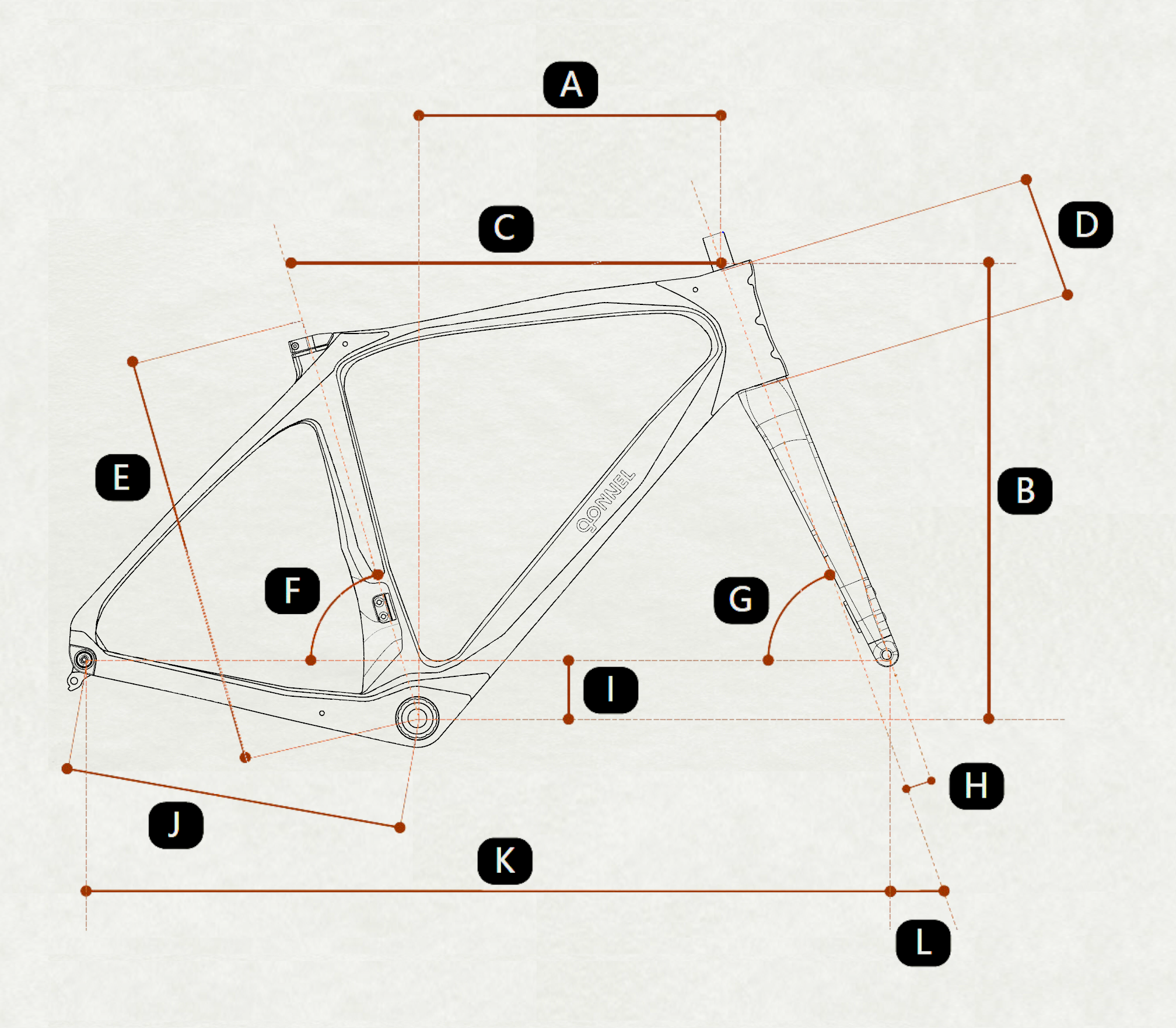

taille de cadre alliage 1

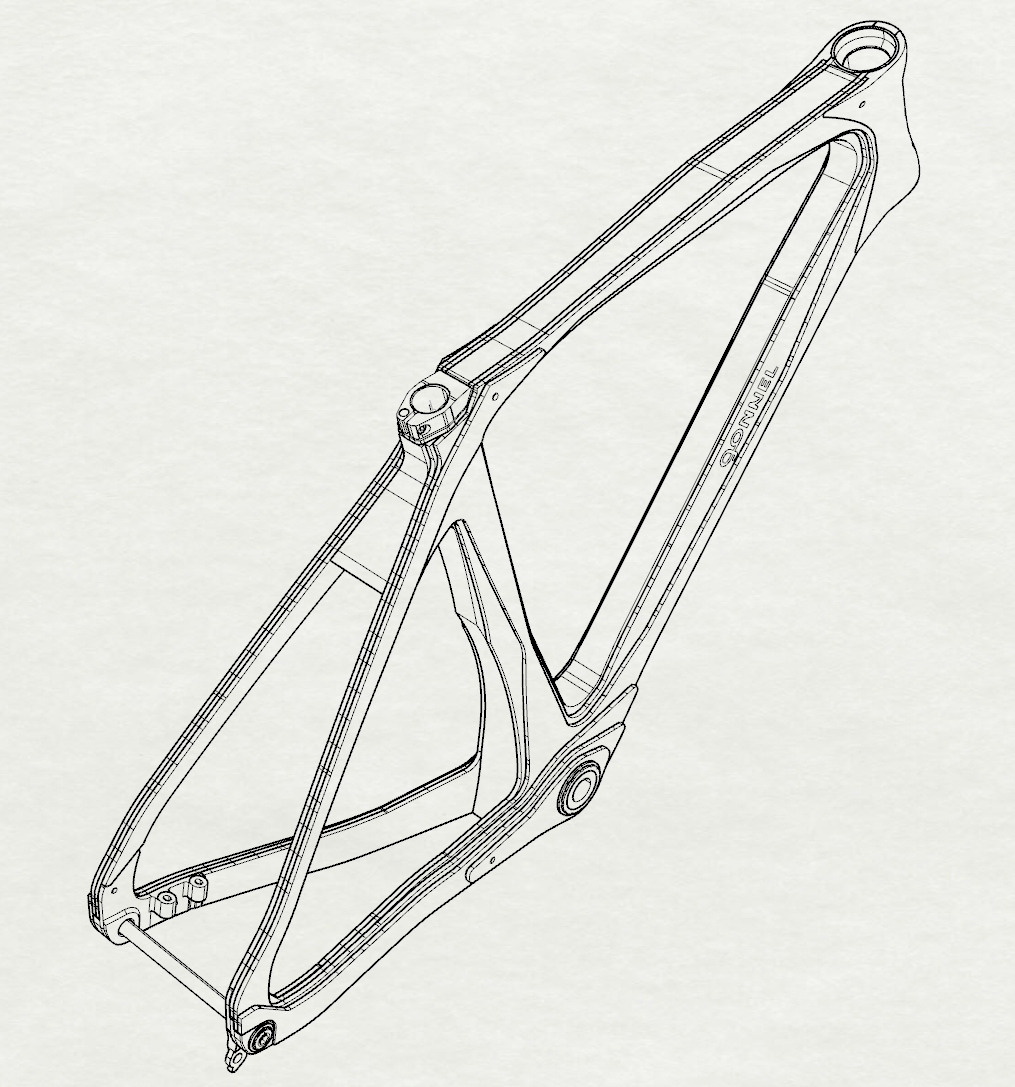

5

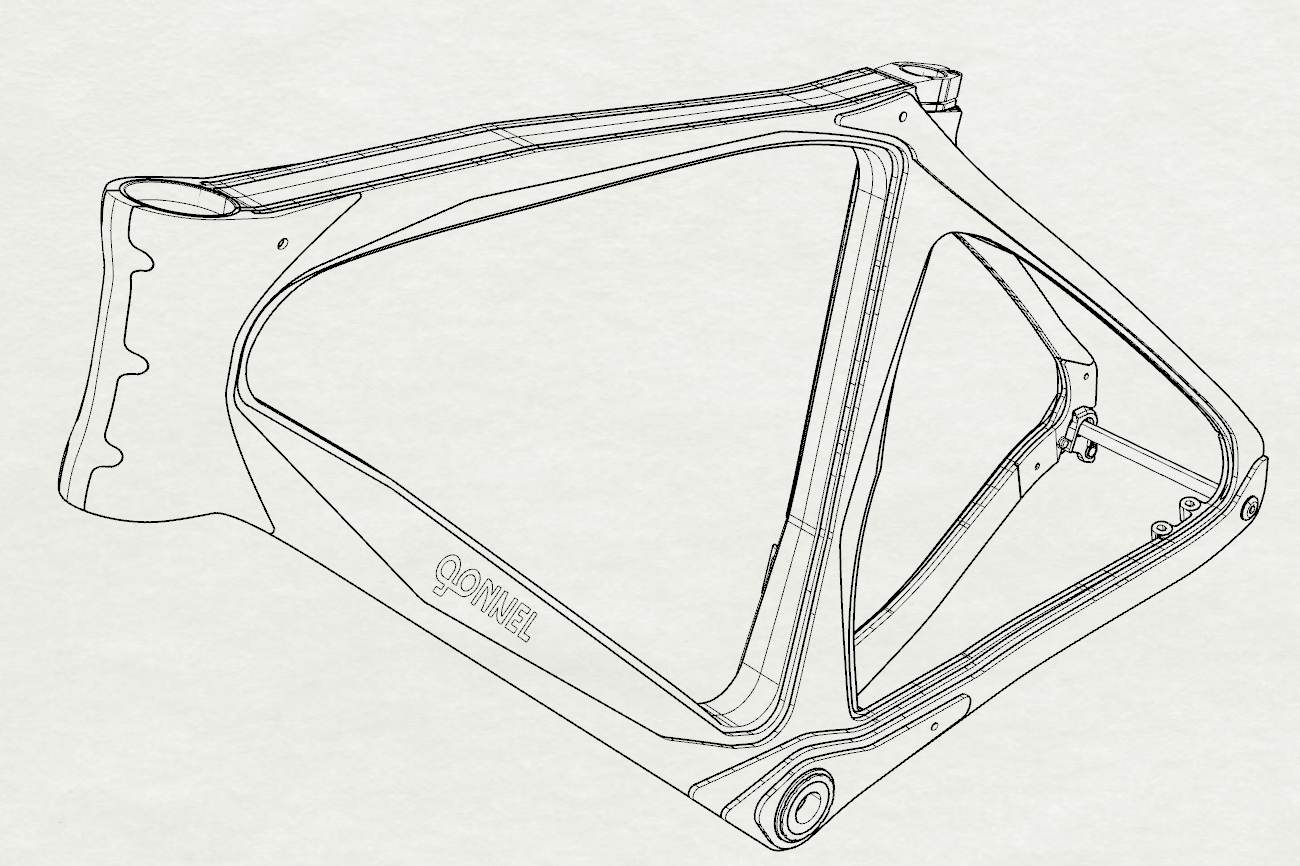

2026 02 04 133854

Ref.

Dénomination

S

M

L

A

Reach

390

400

407

B

Stack

561

577

598

C

Tube horizontal

537

551

564

D

Douille direction

140

155

175

E

Tube de selle

500

530

560

F

Angle du tube de selle

75.1°

75.1°

75.1°

G

Angle de direction

72.3°

72.8°

73.3°

H

Déport fourche

45

45

45

I

B-B

81

81

81

J

Bases

432

432

432

K

Empattement

1011

1022

1030

L

Chasse

64

61

58

Nb : Les dimensions sont en millimètres et degrés

logo gonnel noir france

Témoignages clients

Description & dimensions

GONNEL ALLIAGE

Le Kit Cadre est composé : d’un cadre Gonnel, d’une fourche carbone GRT, d’un boîtier de pédalier, d’un jeu de direction Black Bearing, d’une potence Ritchey.

Poids cadre nu : 1600 g

shmagometriealliage
download
download 1

Ref.

Dénomination

S

M

L

A

Reach

390

400

407

B

Stack

561

577

598

C

Tube horizontal

537

551

564

D

Douille direction

140

155

175

E

Tube de selle

500

530

560

F

Angle du tube de selle

75.1°

75.1°

75.1°

G

Angle de direction

72.3°

72.8°

73.3°

H

Déport fourche

45

45

45

I

B-B

81

81

81

J

Bases

432

432

432

K

Empattement

1011

1022

1030

L

Chasse

64

61

58

Nb : Les dimensions sont en millimètres et degrés
